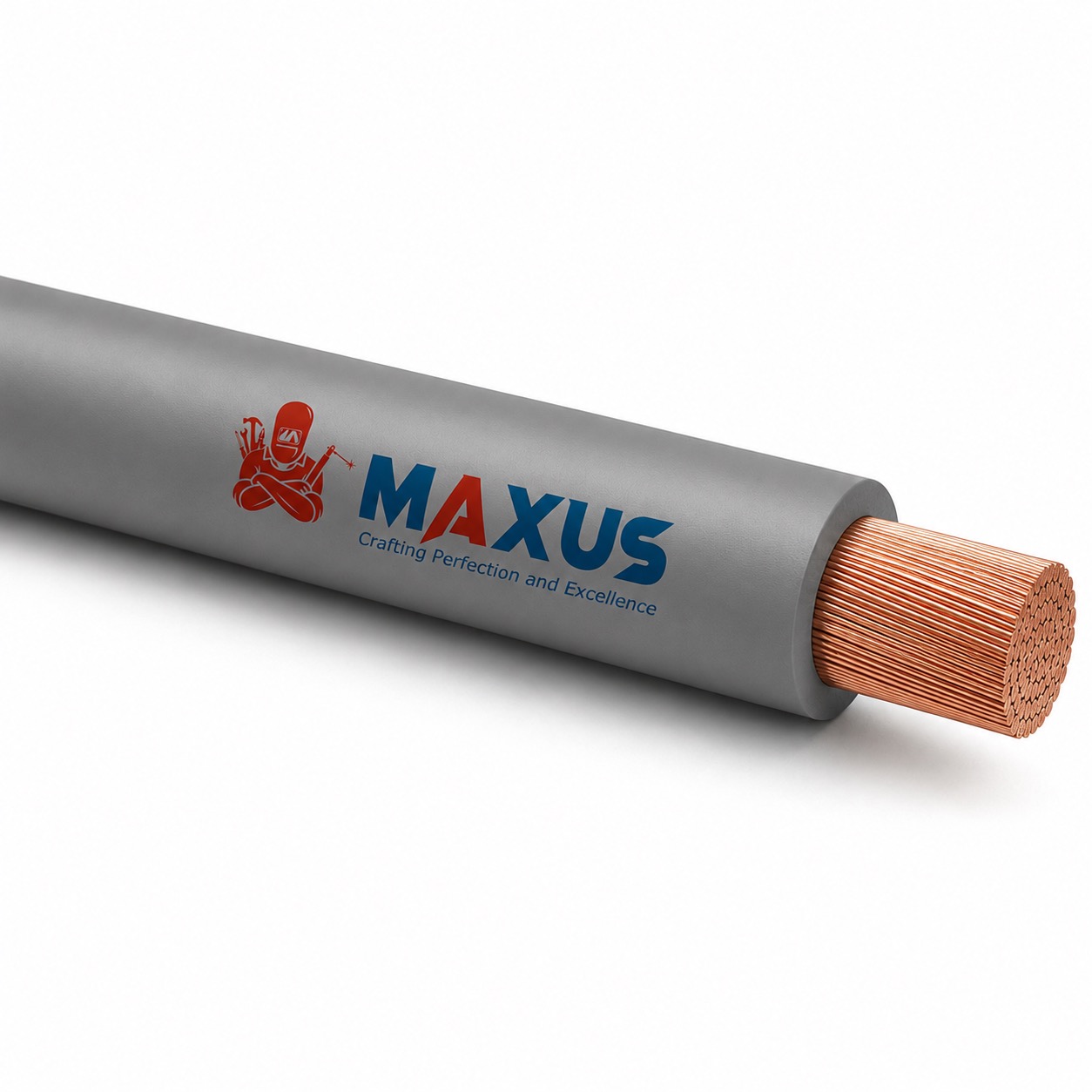

Maxus Premium HOFR Welding Cables
Maxus Welding Cable View 1

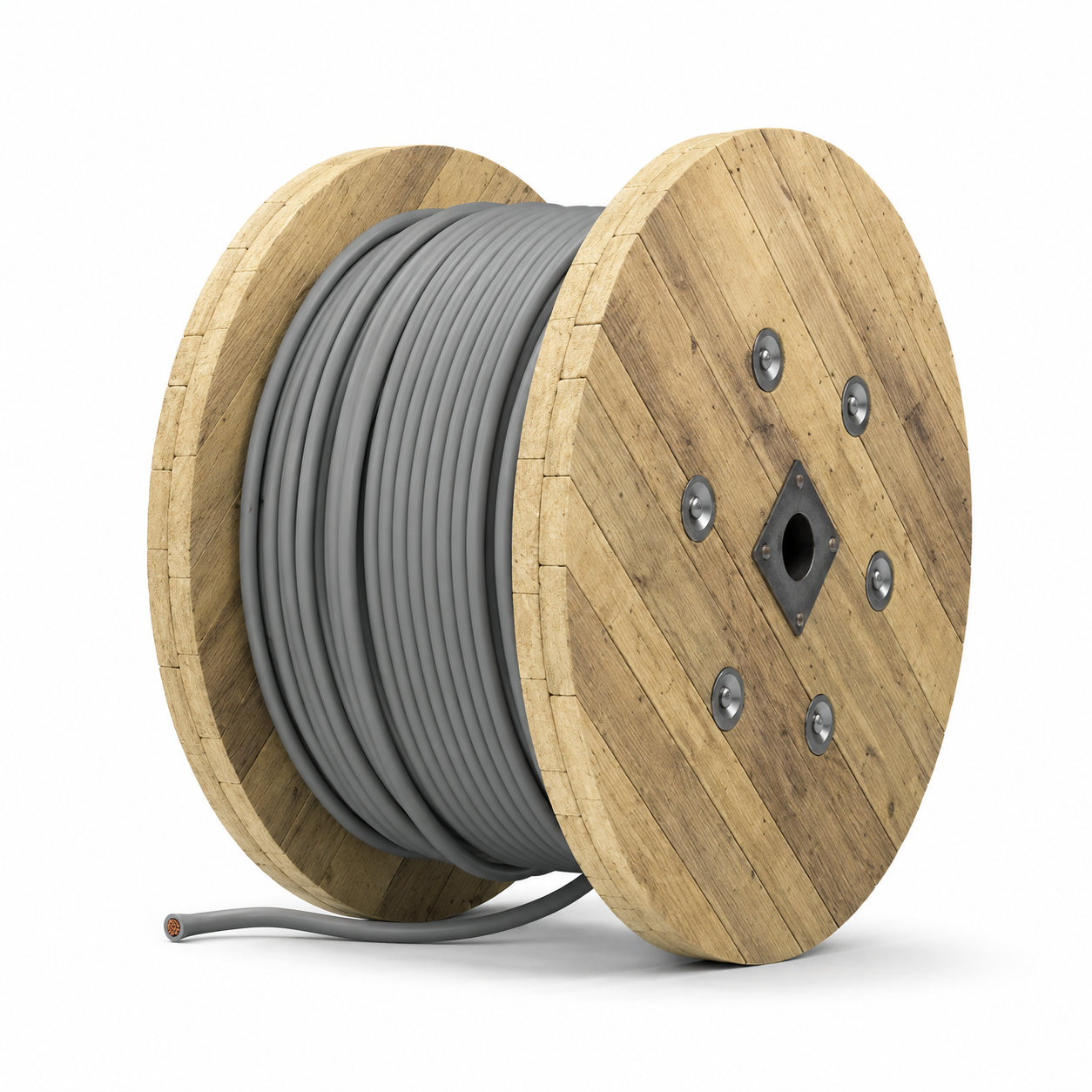

Maxus Welding Cable View 2

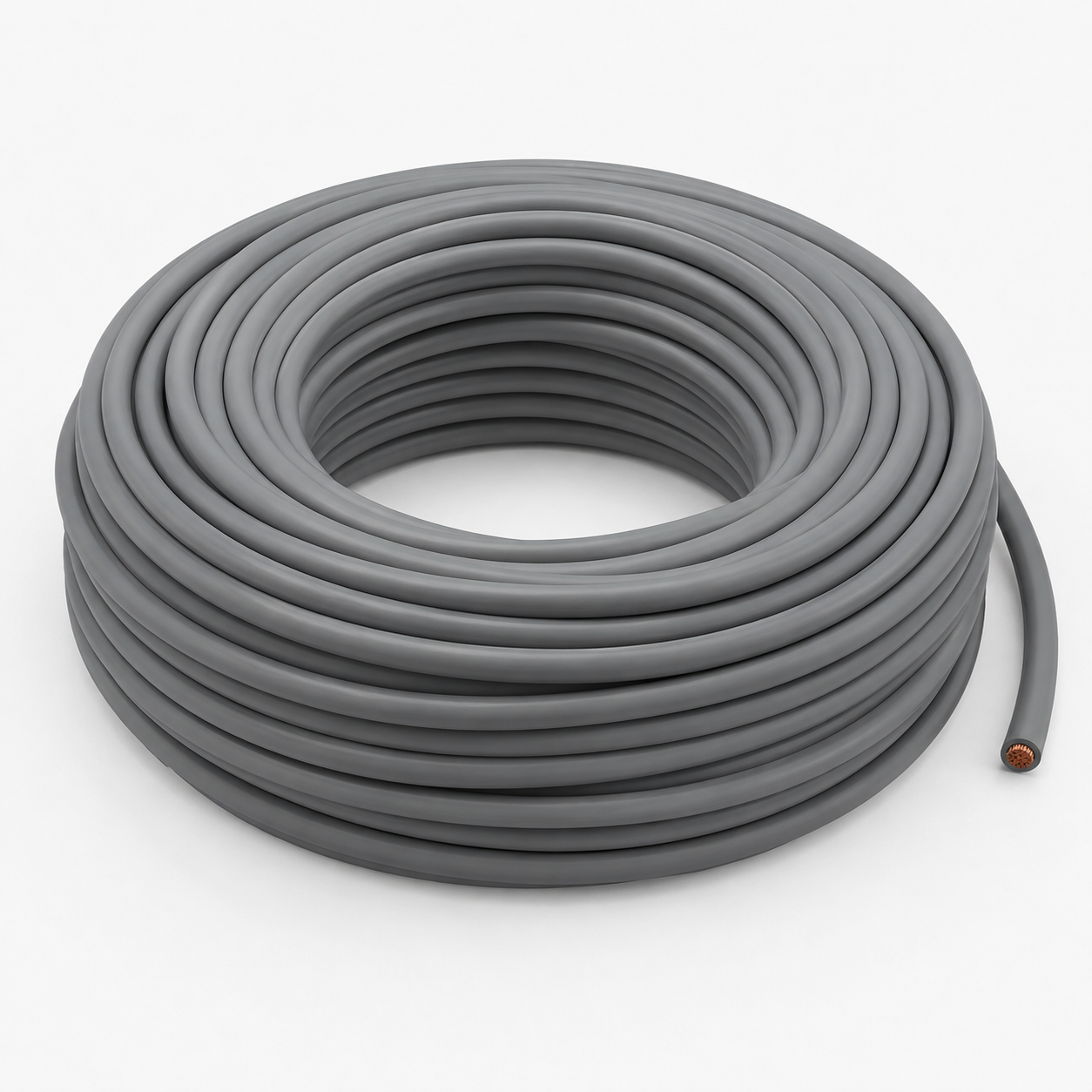

Maxus Welding Cable View 3
Premium Cable Systems

Maxus Cables: HOFR Welding Cables

Applications & Versatility

Welding cables are preferred for their flexibility and are commonly used in systems that require multiple bends and frequent movement. Welding cables are highly versatile because they are manufactured using fine strands of copper.

As one of the leading welding cable suppliers, Maxus Cables manufactures high-performance cables that are ideal for transmitting high levels of energy to welding machines. Maxus also ensures that its welding cables are equipped with a durable outer jacket to protect against abrasion, wear, and damage caused by welding sparks, ensuring long-lasting performance and reliability.

Request a Custom Quote View Technical Specs

Product Options & Features

Select between our premium Copper version or our highly economical Aluminium version, both built to HOFR standards.

Copper HOFR Cables

  • Excellent Fuel & Oil Resistance
  • Good Sub-Zero Temperature Performance
  • Cross-Linked HOFR Insulation
  • Long Service Life
  • Welding Splatter Resistant
  • Heavy Outdoor Applications
  • High Flexibility

Aluminium HOFR Cables

  • Excellent Fuel & Oil Resistance
  • Good Sub-Zero Temperature Performance
  • High Flexibility
  • Long Service Life
  • Welding Splatter Resistant
  • Heavy Outdoor Applications
  • Economical Compared to Copper
  • Cross-Linked HOFR Insulation

Copper HOFR Technical Specifications

Nominal Cross Sectional Area (sq. mm) Nominal Sheath Thickness (mm) Overall Cable Diameter (approx. mm) Max Conductor Resistance at 20°C (Ω/km) No. of Wires
16 2.0 10.5 1.21 511
25 2.0 11.8 0.780 798
35 2.0 13.5 0.554 1121
50 2.0 14.1 0.386 700
70 2.2 16.8 0.272 988
95 2.4 18.5 0.206 1349

Aluminium HOFR Technical Specifications

Nominal Cross Sectional Size (sq. mm) Max Diameter of Wire (mm) Approx. No. of Wires Approx. Overall Diameter (mm) Conductor Resistance at 20°C (Ω/km)
50 0.3 707 15.2 0.639
70 0.3 990 17.4 0.450
95 0.3 1344 19.9 0.342
120 0.3 1698 22.1 0.266
Note: Insulation thickness & OD given in the tables are nominal values. Number & OD of the wire strand is nominal and designed to satisfy conductor resistance (CR) requirements as per standards IEC 60228 / DIN VDE 0295 / IS 8130 / BS 6004. In view of continuous design improvement in cables, specifications provided here may change without prior notice.
