MAXUS MIG 315
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
MIG Welders

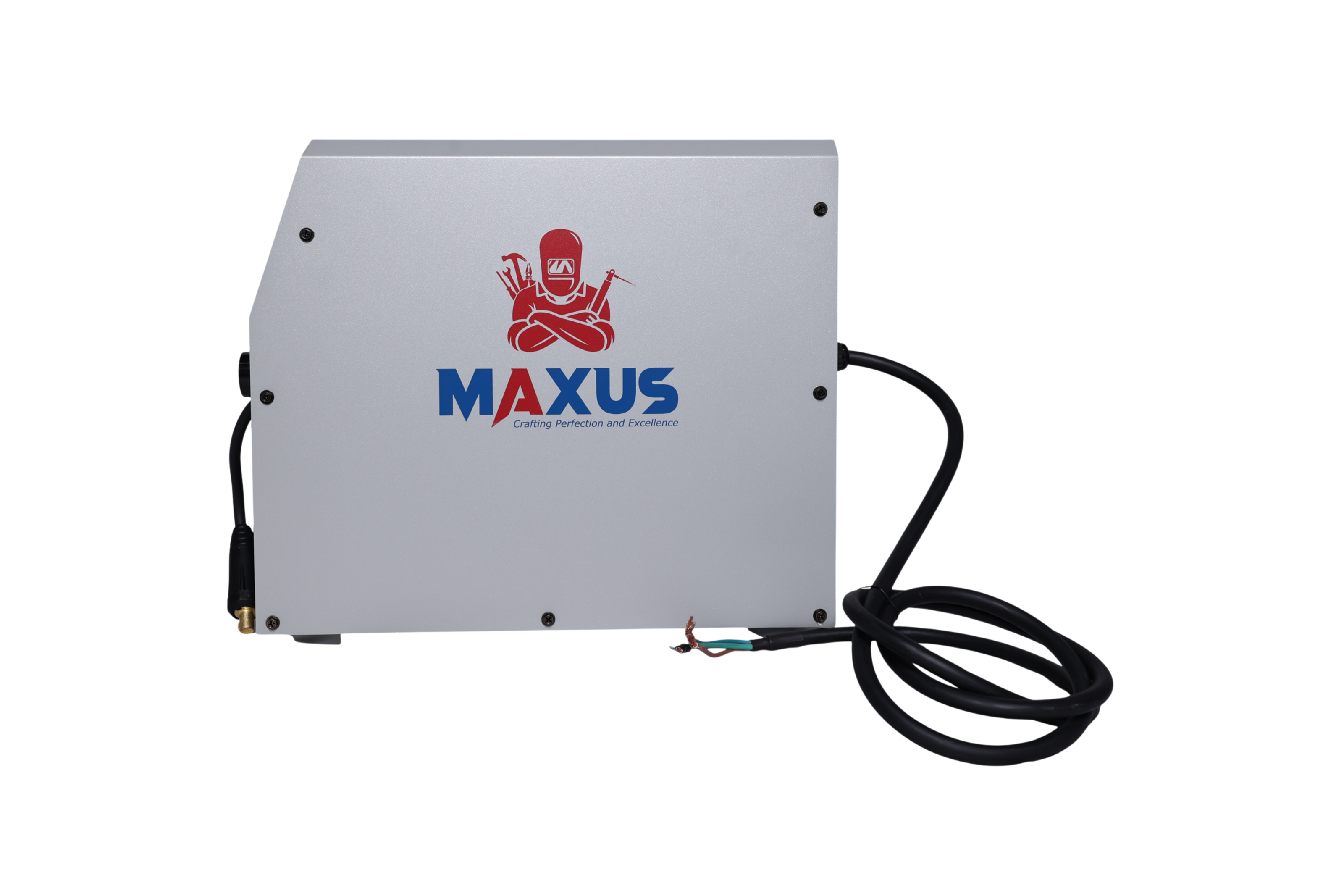

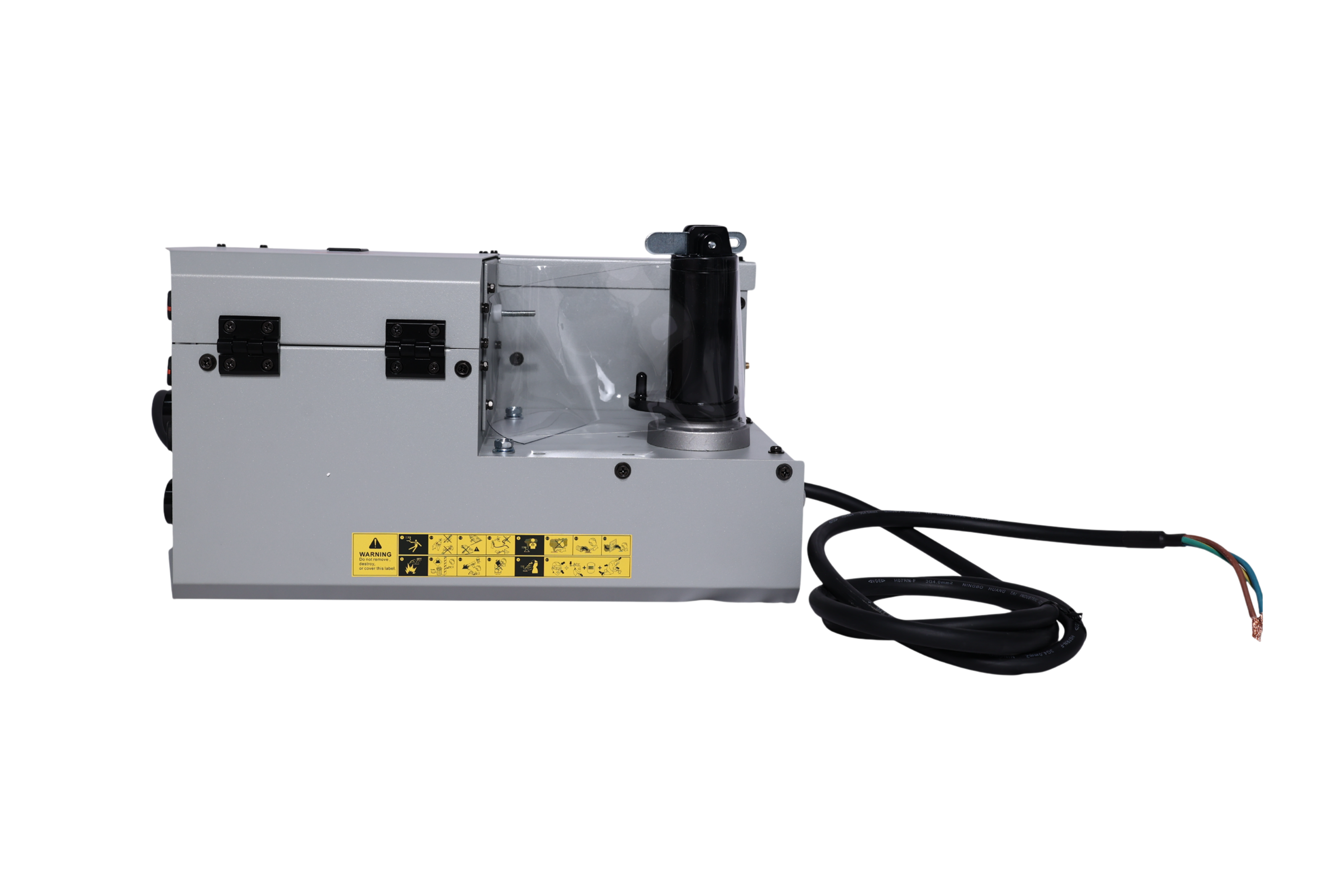

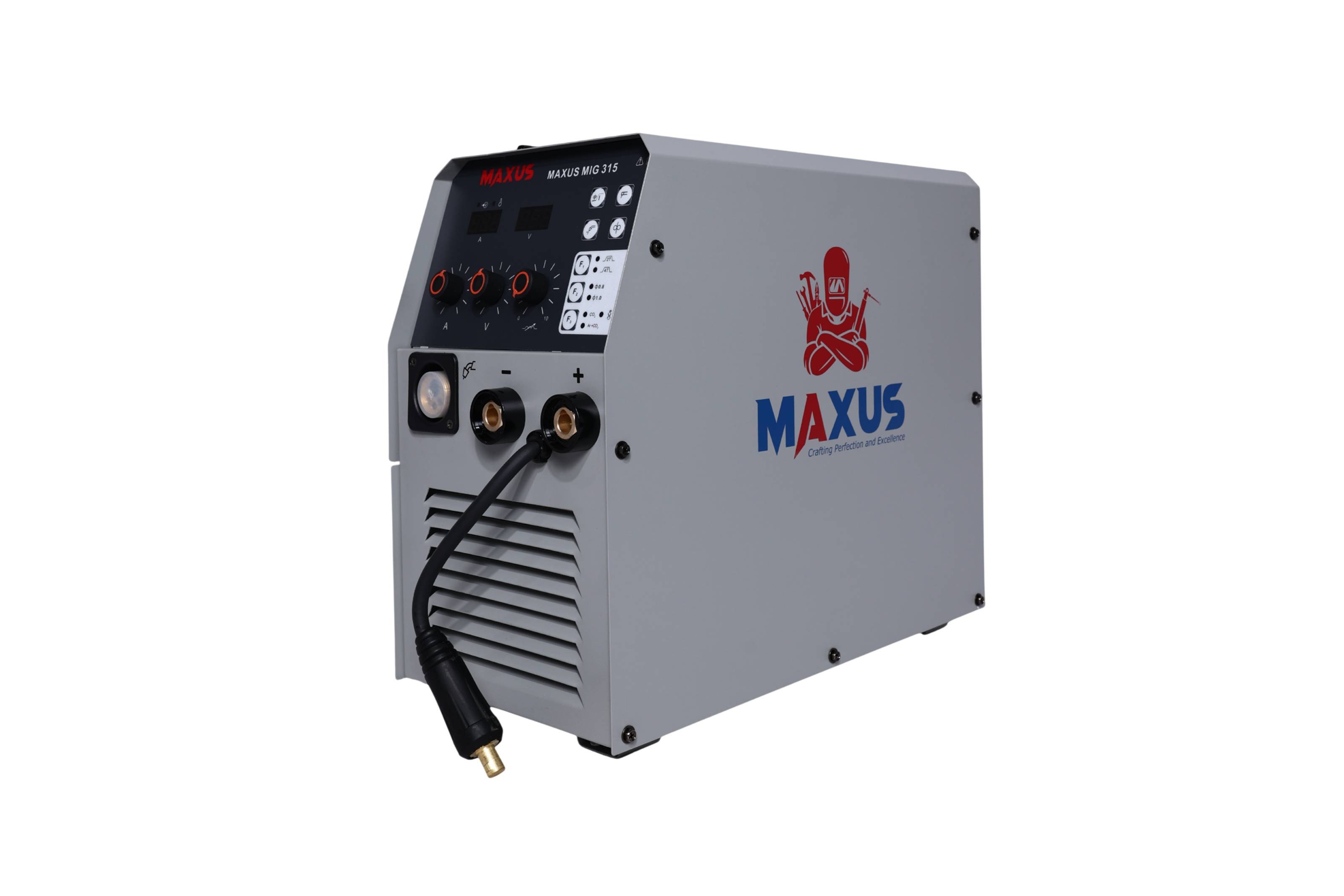

MAXUS MIG 315

Get consistent weld quality with MAXUS MIG 315. Designed with digital control, adjustable output, and efficient performance for demanding welding applications.

Technical Specifications

Input Voltage 220V 1ph Input
Current Range 40-315A Range
System Feature 19 kg Weight
System Feature IGBT Inverter

Machine Specifications

Model MAXUS MIG 315
Input Power 220V, Single Phase, 50/60Hz
Rated Input Current 46 A
Output Voltage 16–25.3 V
Welding Current 40–315 A
Wire Diameter 0.8–1.0 mm
Duty Cycle (40°C) 35%
Insulation Class H
Protection Class IP21S
Dimensions (L × W × H) 514 × 273 × 503 mm
Weight 19 kg
Technology IGBT Inverter

Package Contents

  • 3m MIG Gun
  • 25mm² × 3m Ground Cable
  • 3m Gas Hos

Key Features

  • Advanced digital chip control for precise current and voltage regulation.
  • Supports self-shielded flux-cored and standard MIG welding wires.
  • Wide current and voltage adjustment with accurate preset settings.
  • Compact, ergonomic design with a single-handle grip for easy portability.
  • Performs efficiently for both indoor and outdoor welding applications.

Customer Benefits

  • Consistent, high-quality welds with every operation.
  • Supports a wide range of industrial welding applications.
  • Easy to carry and operate across job sites.
  • Stable arc performance for enhanced welding precision.
  • Energy-efficient operation helps reduce power costs.
  • 2-Year Warranty Included
