Plasma Cutters

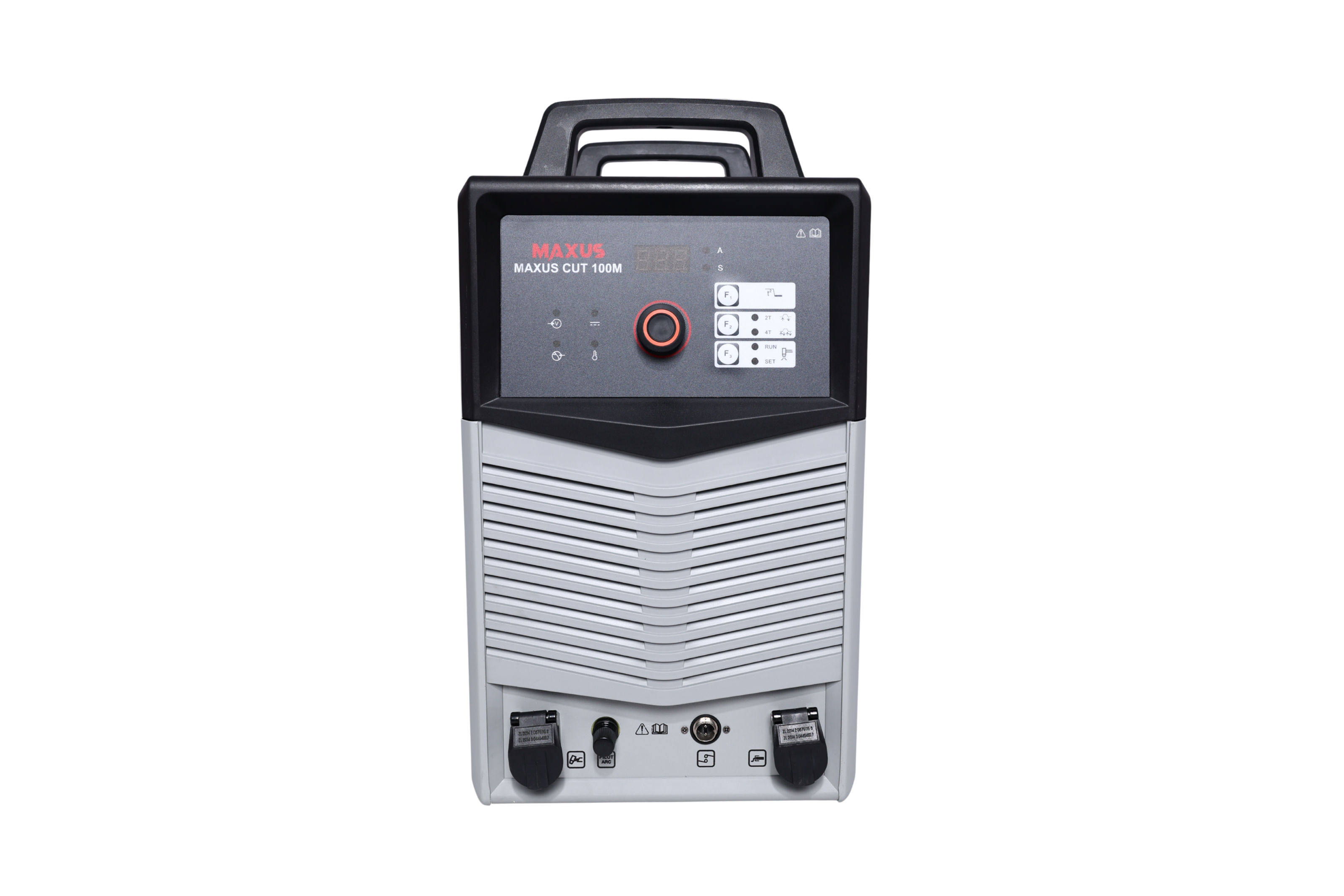

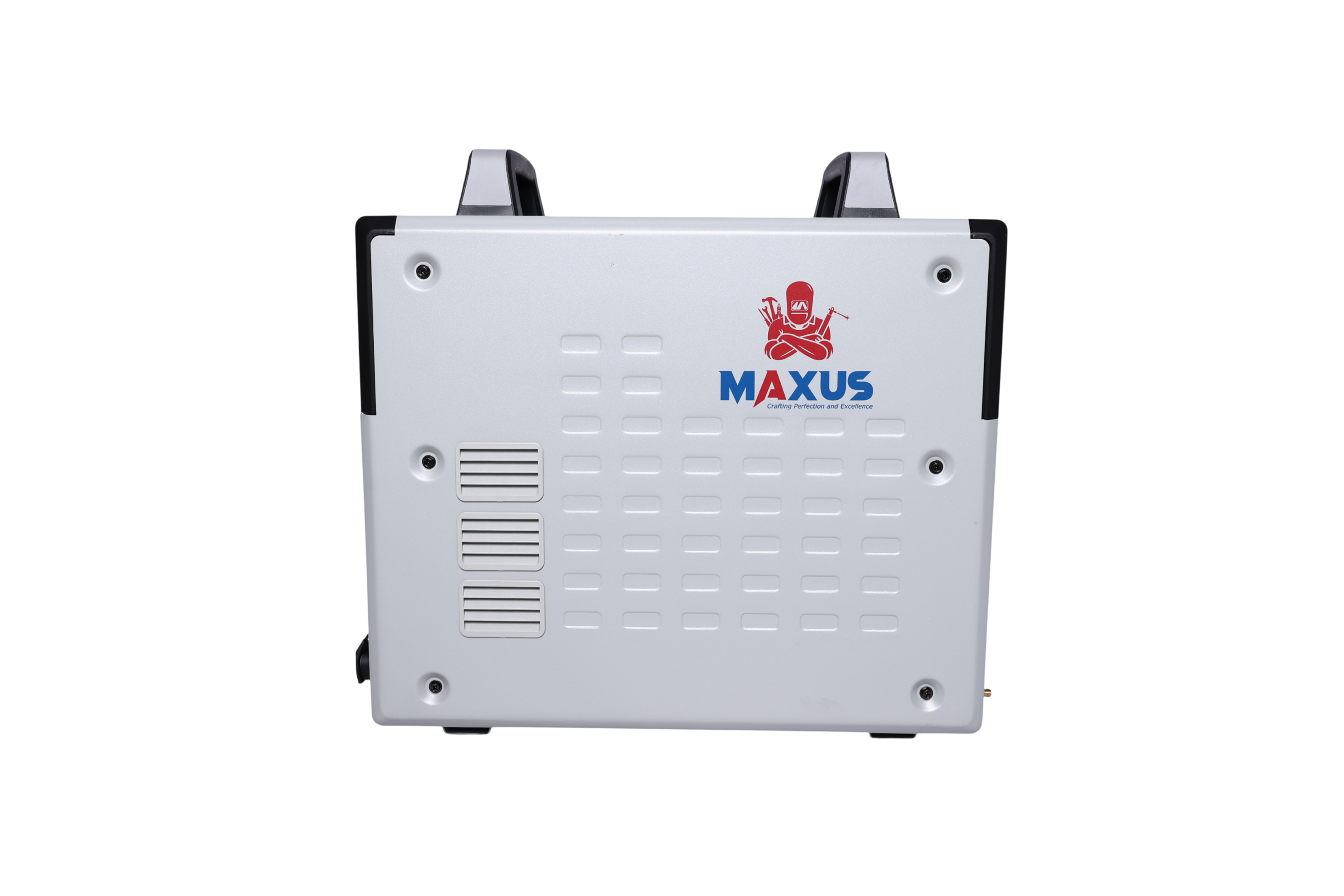

MAXUS CUT 100M
The MAXUS CUT 100M is an air plasma cutting power supply with Constant Current (CC) output characteristics offering the highest value. High frequency and post-flow function are all built in. A good cutting performance is available when cutting stainless, mild steels, aluminum and easy start.
Technical Specifications
Input Voltage
3P 380V Input
Current Range
30-100A Range
System Feature
31.2 KG Weight
Current Range
100% @ 100A Duty Cycle
Machine Specifications
| Input Voltage | 380V 3ph 50/60Hz |
|---|---|
| Input Current | 26A |
| Open Circuit Voltage | 312V |
| Output Current Range | 30 - 100A |
| Duty Cycle (40°C) | 100% @ 100A |
| Efficiency (%) | ≥88.5% |
| Power Factor | 0.88 cosφ |
| Insulation Class | H |
| Protection Class | IP21S |
| Dimensions (L*W*H) | 547 * 262 * 501 mm |
| Weight | 31.2 KG |
| Cutting Thickness | 1 - 30 mm |

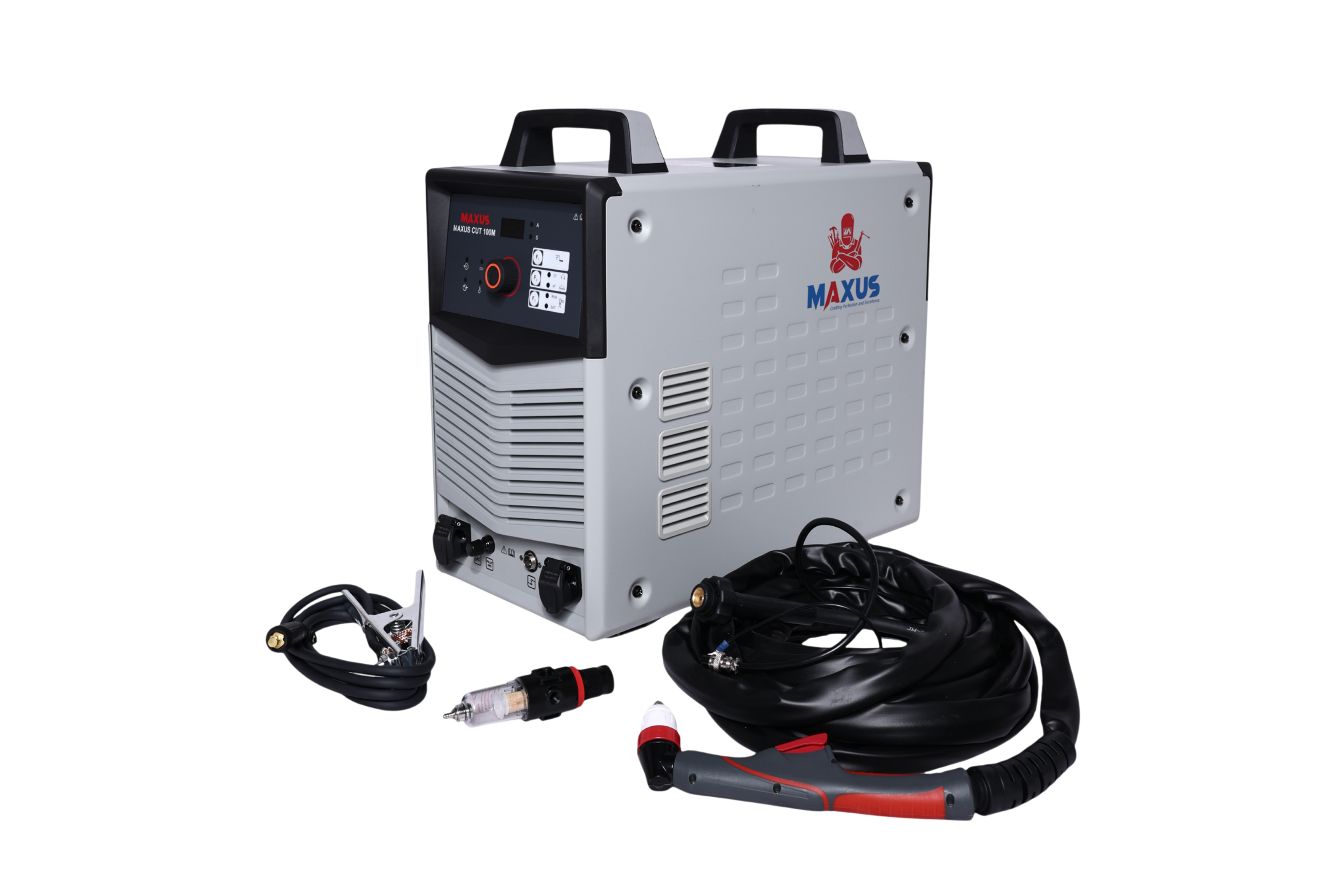

Package Contents
- 8M Torch
- 16mm² 2*3M Ground Cable
- Regulator
