Plasma Cutters

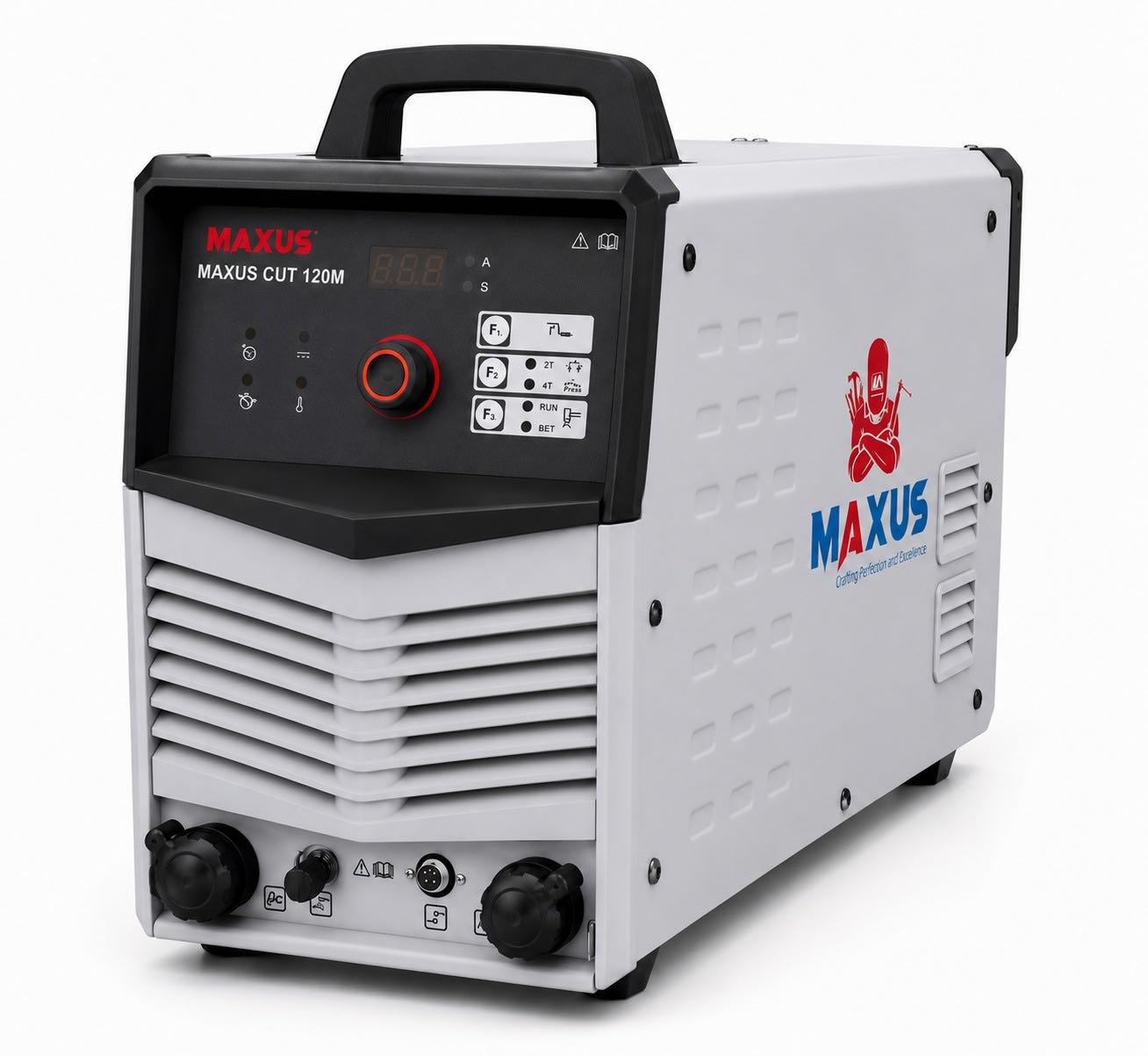

MAXUS CUT 120M
The MAXUS CUT 120M is an air plasma cutting power supply with Constant Current (CC) output characteristics offering the highest value. High frequency and post-flow function are all built in. A good cutting performance is available when cutting stainless, mild steels, aluminum and easy start.
Technical Specifications
Input Voltage
3P 380V Input
Current Range
30-120A Range
System Feature
30 KG Weight
Duty Cycle
60% Duty Cycle
Machine Specifications
| Input Voltage | 3~AC380V±10% / 50/60Hz |
|---|---|
| Input Current | 30A |
| Open Circuit Voltage | 324V |
| Output Current Range | 30 - 120A |
| Duty Cycle (40°C) | 60% |
| Efficiency (%) | ≥88.5% |
| Power Factor | 0.88 cosφ |
| Insulation Class | H |
| Protection Class | IP21S |
| Dimensions (L*W*H) | 547 * 262 * 501 mm |
| Weight | 30 KG |
| Cutting Thickness | 1 - 40 mm |

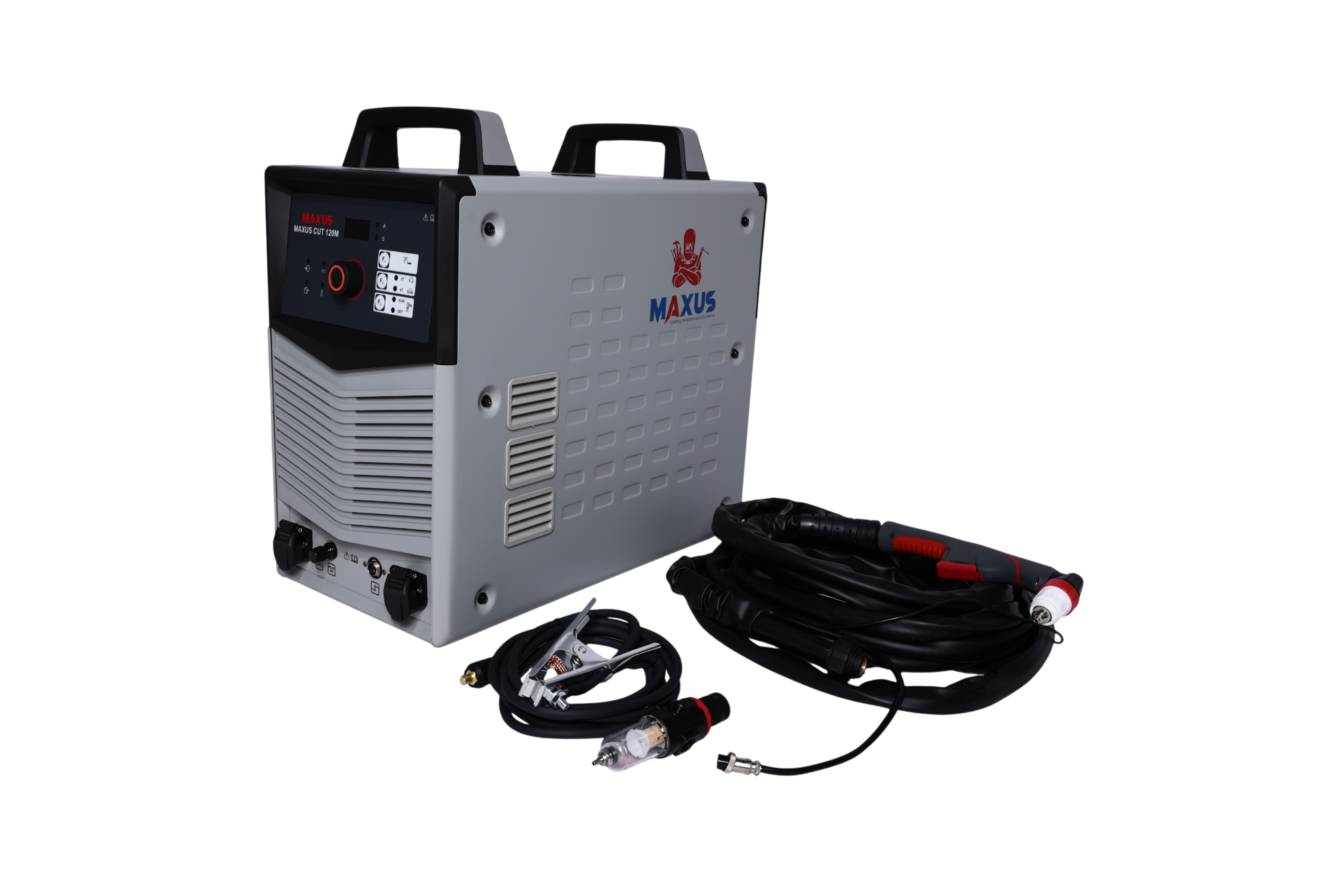

Package Contents
- 8M Torch
- 16mm² 2*3M Ground Cable
- Regulator
